Dwyer

Level Switches

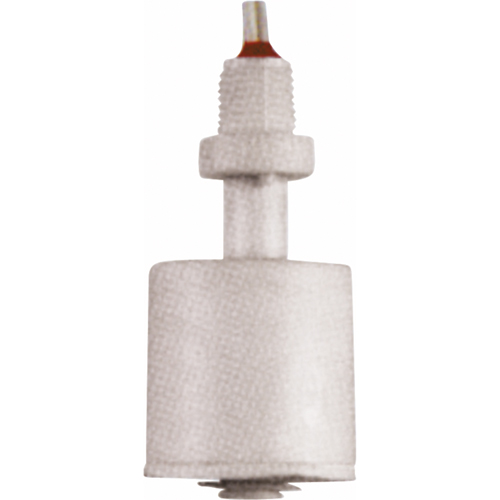

Model: HF660

Mfr. No.: F7-SB

  • Level Switches Equipment World

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$122.00 / Each

0 In Stock

Operating Temperature

220°F (105°C)

Float Material

Buna-N and Epoxy

Stem Material

316 Stainless Steel

Max. Temp

220°F (105°C)

Max Pressure

150 PSIG (10 bar)

Min Sp. Gr.

0.6

Deadband

1/16" (2 mm)

  • Hermetically sealed reed switch contacts are actuated by magnets bonded inside the float
  • Change from normally open (N.O.) to normally closed (N.C.) contacts in 10 seconds or less by reversing the orientation of the float on the stem
  • Switch contact ratings are suitable for direct connection to most solid state control systems and alarm/monitoring devices
  • Simple relay interfaces can be employed for higher current control applications
  • Switch mounts easily at the top, bottom or intermediate levels in tanks and vessels
  • Mounts directly in a 1/8" NPT fitting for interior mounting
  • Where exterior mounting or access is required, special adapters are available as option
  • To mount at intermediate levels, combine fittings shown with any length of pipe
  • Electrical Ratings: Model HF660: AC - 25 VA, 1.0 A, 200 V; DC - 10W, 1.0 A, 200 V
