Reed Instruments

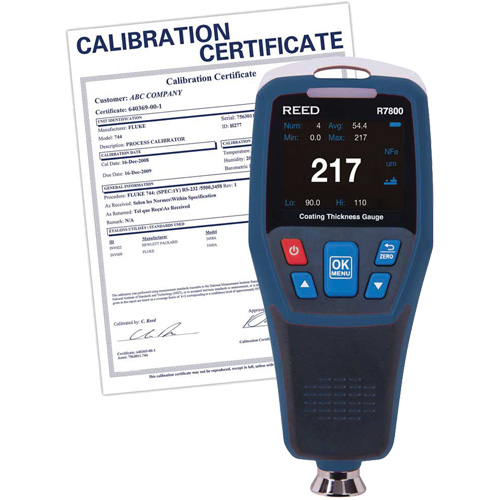

Coating Thickness Gauge with ISO Certificate

Model: IC487

Mfr. No.: R7800-NIST

  • Coating Thickness Gauge with ISO Certificate Equipment World

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$599.00 / Each

0 In Stock

Display Type

Digital

Measuring Range

0 - 1250 µm (0.1 - 49.2mil)

Accuracy

0 to 1250 μm (±3% +1 μm), 0 to 49.21 mil (±3% +0.04 mil)

Resolution

0 to 99.9 μm (0.1 μm), 100 to 1250 μm (1 μm), 0 to 4.99 mil (0.01 mil), 5.0 to 49.2 mil (0.1 mil)

Measurement Modes

Single & Continuous

Minimum Curvature Radius

5 mm (196.85 mil)

Minimum Substrate Thickness

0.5 mm (19.69 mil)

Certification

CE

Refresh Rate

0.5 Seconds on Continuous Mode

Dimensions

5.9" x 2.6" x 1.38" (152 mm x 65 mm x 35 mm)

Weight

6.35 oz.

  • Designed for non‐invasive coating thickness measurements
  • Features zero or two point calibration, user adjustable high/low alarms, and a USB interface to further analyse results in the included software
  • Automatically detects ferrous and non-ferrous substrates
  • Easy-to-read colour LCD display
  • 360° screen rotation allows users to view measured readings from any angle
  • Durable gauge and probe construction
  • Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
  • Tri-colour LEDs quickly indicate when measurements are below (red), above (yellow), or within set parameters (green)
  • Internal memory stores up to 500 groups of data
  • View stored data, charts or real-time measurement with software
  • Low battery indication and auto shut off
  • Includes: (1) Coating thickness gauge, (1) ISO Certificate with full data and uncertainties, (1) Ferrous substrate, (1) Non-ferrous substrate, (5) Reference films, (1) USB cable, (1) Wrist strap, (1) Sensor cover, (2) AA batteries, (1) Hard carrying case
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
